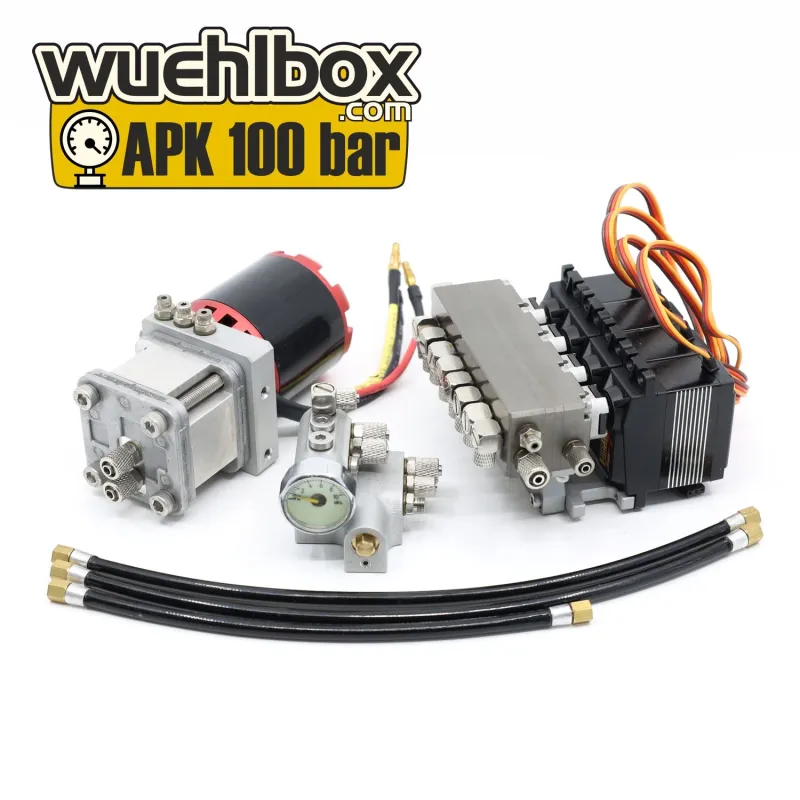

APK 100 Bar 4-way Hydraulic Set with Pressureless Circulation

This APK hydraulic set is characterized by its extremely sensitive control, which is also implemented in models with 20-30 bar.
The maximum pressure of 100 bar is only recommended for 1:12 APK models; all other booms will disassemble themselves over time :-)
Special hoses are recommended for pressures above 50 bar; the included hoses from the pump to the valve block and pressure relief valve are pressure-resistant up to 630 bar! (six hundred and thirty, in case you think that's a typo :-)
This hydraulic set is used in models in scales from 1:14 to 1:8.

Technical data:
- 4-way rotary slide valve made of steel incl. servo
- Max. system pressure 100 bar
- Pressureless circulation in the zero position
- Reproducible positioning of a hydraulic cylinder possible to within 1/100 mm!
- Inlets and outlets with M5 thread
- 3.1mm cross-bore in the valve block, supplied from both sides
- Recommended oil: ISO 46

Dimensions:
Valve block with servo: 90mm x 85mm x 50mm
Pump with motor: 60mm x 60mm x 120mm
Pressure relief valve: 40mm x 50mm x 40mm

Recommended controller: Item No. 251063 FrSky Neuron II Brushless 60A ESC

Performance Data:
Idle (pressureless circulation)
Maximum speed: 2840 rpm
Flow rate: 1.05 l/min
Current: 0.6 A

50 bar operating pressure
Maximum speed: 2630 rpm
Flow rate: 0.95 l/min
Current: 15.5 A

100 bar pressure
Maximum speed: 2310 rpm
Flow rate: 0.79 l/min
Current: 25.7 A
