LESU R956 Swing Motor Upgrade – Self-Locking Worm Gear Drive

Short Description

Powerful LESU swing motor upgrade for the R956. The new drive features a self-locking worm gear system, preventing unwanted rotation of the upper structure when the excavator is positioned on a slope.

Compared to the previous servo-based swing drive, the new version provides significantly more power, reliable self-locking and improved swing control.

Product Description

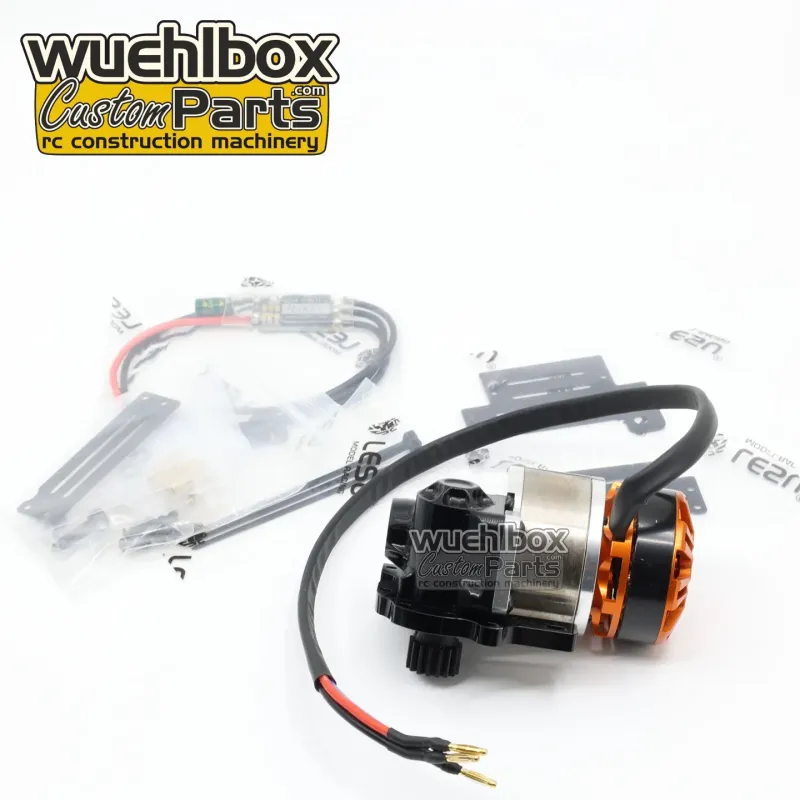

LESU Swing Motor Upgrade for R956

The new LESU swing motor is a highly recommended upgrade for the LESU Liebherr R956, significantly improving the performance and holding capability of the swing drive.

The previous version used a servo-based swing drive. Since this system did not provide sufficient self-locking capability, the weight of the upper structure could cause it to rotate by itself when the excavator was positioned on an incline.

New Drive with Self-Locking Worm Gear

The upgraded version uses a significantly more powerful motor combined with a worm gear drive.

The key advantage is the self-locking function of the worm gear. When the swing drive is not operated, the gearbox reliably holds the upper structure in position. This prevents unwanted rotation when the excavator is working or parked on a slope.

The more powerful motor also provides additional performance reserves, resulting in stronger and more controlled rotation of the upper structure.

Advantages

• Upgrade swing motor for the LESU R956
• Significantly more powerful than the previous servo-based swing drive
• Self-locking worm gear drive
• Prevents unwanted upper-structure rotation on slopes
• Reliably holds the upper structure in position
• More powerful swing operation
• Improved and more controlled swing movement
• Recommended upgrade for models equipped with the older swing drive

Ideal for LESU R956 owners with the previous servo-based swing drive who want increased power and reliable positioning of the upper structure.
